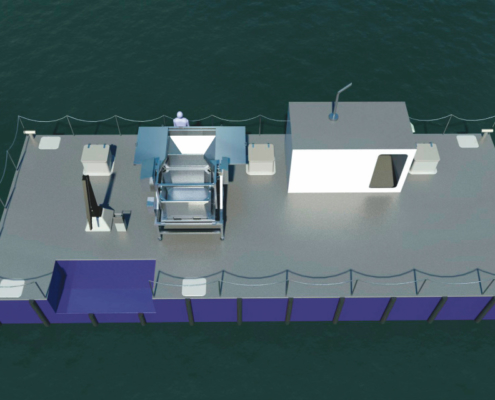

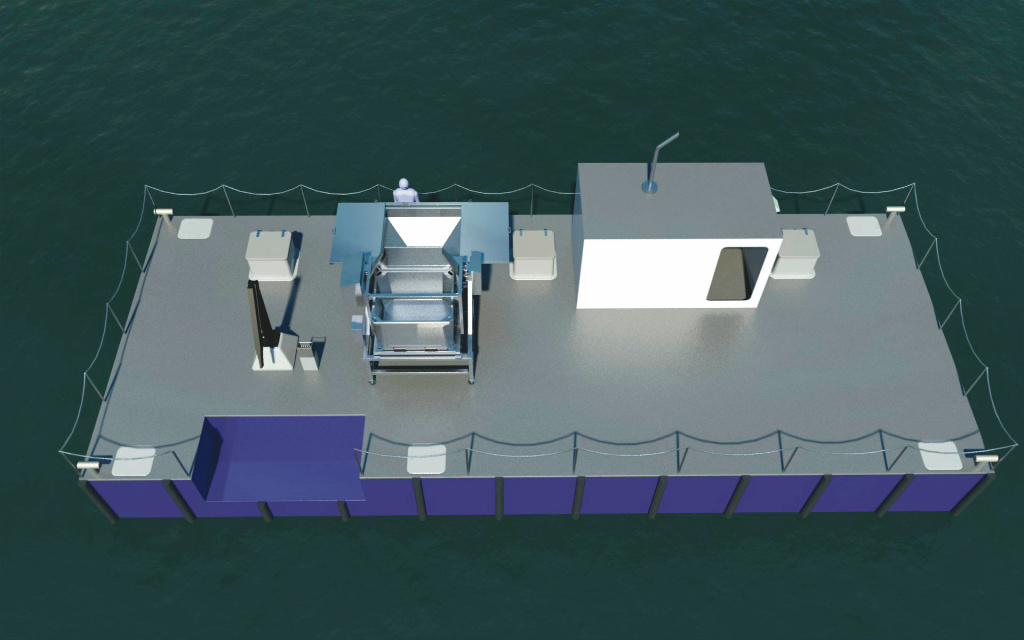

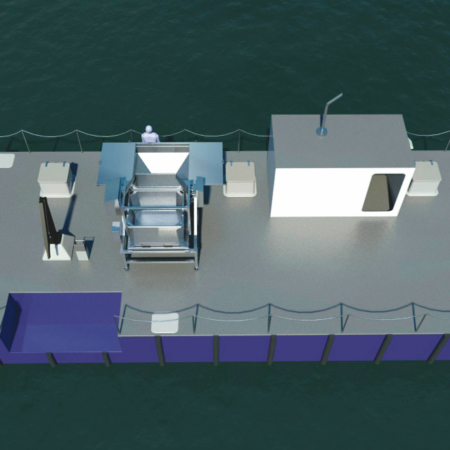

DF200

Dead fish barges – 200 m3

Ensilage barge with a capacity to grind up to 12 MT of fish per hour. DF200 is certified in accordance with NS 9415 and has a storage capacity of 200 m3 divided on three tanks.Patented internationally.

Product specifications:

Materials: Built in maintenance friendly composite. Resistant to chemicals and corrosion.

Protection: Industry approved epoxy is used on the exterior for easy cleaning. Industry approved paint is used inside the storage tanks.

Environment: Recyclable materials.

Weight and size: Barge size: L x W x H: 16.5 x 6.4 x 2.75 meters. Weight: 15 MT. Freeboard: Empty 2.55 m, Loaded 0.90 m. Easy to tow and transport on land.

Functions:

  • Mixers.
  • Grinder: capacity of 6 or 12 MT per hour depending on type chosen.
  • 3 hinged tank lids with hatches.
  • Automatic dosage and inclusion of acid. Available space for 1000 L of acid.
  • Deck crane with a 1000 kg winch. 220V hydraulic aggregate.
  • Lift or transport belt to grinder.
  • Barge aggregate.

Safety: Aluminum railings with chains in stainless steel. 1 piece of lifebuoy and ladder. 4 bollards. Unsinkable and stable. D fenders on one side.

User friendly: User handbook and stability calculations are included with delivery.
